Máy tính công nghiệp Panel PC AAEON- AHP-1070
- 7″ WVGA LED PC with TI OMAP 600 MHz Processor
- Hoạt động liên tục 24/7
- Bảo hành 24 tháng

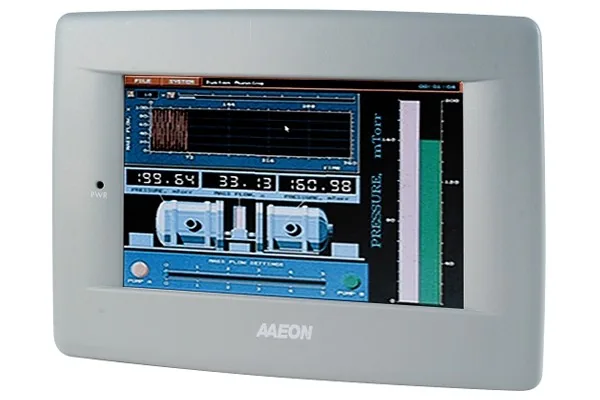

Máy tính công nghiệp Panel PC Aaeon AHP-1070 ( 7 inch)

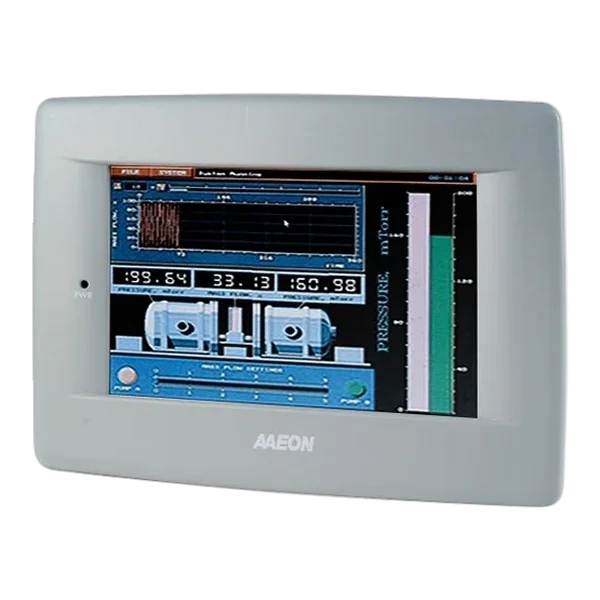

Máy tính công nghiệp Panel PC Aaeon AHP-1070 ( 7 inch)
Overview
The AHP-1070 WVGA LED PC supports TI OMAP 600 MHz processor and includes the LP DDR 128/256 MB RAM system memory. The LCD/CRT controller has been integrated in the TI processor. This model supports versatile I/O ports, such as one RS-232, one RS-232/422/485, two USB2.0, one USB client, one 10/100Base-TX RJ-45 port, and one VGA-out to offer flexible capabilities to connect with devices. For robust HMI performance, the AHP-1070 employs onboard 256MB MAMD Flash/ and one SD card to provide ample storage. It also equips two Mini-Card (USB interface only) for further expansion.
Applications
- Factory Automation
- Home Automation
- POS
- HMI
Features
- Onboard TI OMAP 600 MHz
- 7″ 300 Nits WVGA LED Backlight
- Fanless Operation
- 256MB Flash ROM, Max 256MB DDR
- Slim Design: 45 mm
Specifications [AHP-1070]
| SYSTEM | |
| PROCESSOR | TI OMAP 600 MHz |
| SYSTEM MEMORY | LP DDR 128 MB RAM, up to 256 MB |
| LCD/CRT CONTROLLER | Integrated in TI processor |
| ETHERNET | 10/100Base-TX, RJ-45 x 1 |
| I/O PORT | RS-232 x 1, RS-232/422/485 x 1, USB 2.0 x 2, USB client x 1, LAN x 1, VGA out x 1 |
| STORAGE DISK DRIVE | 256 MB NAND FLASH onboard/ SD card x 1 expansion |
| EXPANSION SLOT | Mini-Card x 1 (USB interface only) |
| OS SUPPORT | Windows® CE 6.0 , Linux |
| MECHANICAL | |
| CONSTRUCTION | IP65, NEMA 4, plastic front bezel |
| COLOR | Bezel: Patone 5425C, Rear cover: RAL 7040 |
| MOUNTING | VESA 75/ Panel mount |
| DIMENSION | 8.8” (W) x 6.14” (H) x 1.77” (D) (225mm x 156mm x 45mm) |
| CARTON DIMENSION | 11.4” (W) x 7.48” (H) x 9’” (D) (290mm x 190mm x 230mm) |
| GROSS WEIGHT | 4.41 lb (2 kg) |
| NET WEIGHT | 1.54 lb (0.7 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | 32°F ~ 122°F (0°C ~ 50°C) (ambient w/ airflow) |
| STORAGE TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) |
| STORAGE HUMIDITY | 5~90% @ 40°C, non-condensing |
| VIBRATION | 3 Grms/ 5~ 500Hz/ operation – with SD |
| SHOCK | 20 G peak acceleration (11 msec. duration) |
| EMC | CE/FCC class A |
| POWER SUPPLY | |
| DC INPUT | DC 12V w/ 2-pin terminal block |
| LCD | |
| DISPLAY TYPE | 7″ TFT LCD |
| MAX. RESOLUTION | 800 x 480 |
| MAX. COLORS | 262K colors |
| LUMINANCE | 300 cd/m² |
| VIEWING ANGLE | 140°(H), 120°(V) |
| BACK LIGHT | LED |
| BACK LIGHT MTBF (HOURS) | 30000 |
| TOUCHSCREEN | |
| TYPE | 5-wire, analog resistive |
| LIGHT TRANSMISSION | 80% |
| LIFE TIME | 10 million activations |
Ordering Information [AHP-1070]
| PART NUMBER | TF-AHP- 1070HTT-A1-1012 | TF-AHP- 1070HTT-A2-1012 |
|---|---|---|
| DISPLAY TYPE | 7″ TFT-LCD | 7″ TFT-LCD |
| MAX. RESOLUTION | 800 x 480 | 800 x 480 |
| LUMINANCE | 300 cd/m² | 300 cd/m² |
| VIEW ANGLE | 140(H), 140V | 140(H), 140V |
| BACKLIGHT MTBF (HOURS) | 30000 | 30000 |
| CPU | TI OMAP – 600 MHz | TI OMAP – 600 MHz |
| LAN | 1 | 1 |
| USB | 2 | 2 |
| RS- 232 | 1 | 1 |
| RS- 485/422/232 | 1 | 1 |
| STORAGE | 128 MB NAND Flash onboard SD Card x 1 (WinCE pre- installed) | 256 MB NAND Flash onboard SD Card x 1 (WinCE pre- installed) |
| RAM | 128 MB onboard | 256 MB onboard |
| DISPLAY | VGA x 1 | VGA x 1 |
| EXPANSION | Mini-Card x 1 (USB Interface only) | Mini-Card x 1 (USB Interface only) |
| MOUNTING | VESA 75/ Panel mount | VESA 75/ Panel mount |
| POWER | DC12V | DC12V |
| TEMP. | 0°C~50°C (w/o air) | 0°C~50°C (w/o air) |
| TOUCH | 5-wire resistive | 5-wire resistive |
Packing List
- Phoenix Power Connector
- Mounting Brackets and Screws
- Product CD
- AHP-1070
Optional Accessories
| Part Number | Description |
| ARM-DR075-0 | DIN Rail Kit with VESA 75mm Standards |
| ARM-WK075-0 | Wallmount Kit for VESA 75/100mm Standard Screw Holes |
| 1255300404 | 12V 40W Power Adapter w/ 2-pin Terminal Block |
| 1702031802 | Power Cord (US Type) |
| 1702031803 | Power Cord (European Type) |
| 170203180E | Power Cord (Japanese Type) |
