Máy tính công nghiệp Panel PC AAEON- AHP-2122
- 12.1″ Rugged Fanless Touch Panel Computer with Onboard Intel® Atom™ D525 Processor
- Hoạt động liên tục 24/7
- Bảo hành 24 tháng

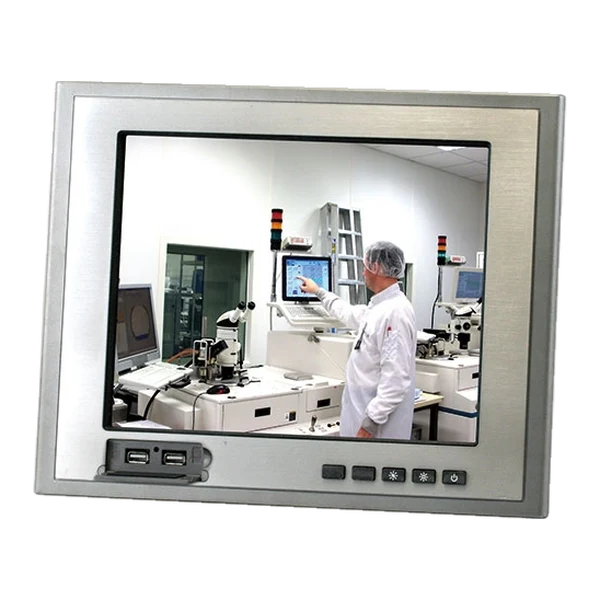

Máy tính công nghiệp Panel PC Aaeon AHP-2122( 12.1 inch)
Máy tính công nghiệp Panel PC Aaeon AHP-2122( 12.1 inch)
Overview
- The AHP wide-temperature series touch panel computer comes in three sizes – 12.1”, 15” and 17”, and the 12.1” and 15” Rugged Panel Computers have been launched first. Due to the various support on panel size options, OEM and ODMs have a variety of size options to select from. Moreover, the current AHP-2122 support panel, wall, desktop and VESA 100 for optimal display mounts.The AHP-2122 is a 12.1” Rugged HMI Touch Panel Computer with Intel Atom D525 processor and has two Gigabit Ethernet ports for Ethernet connections. Also included is one DDR3 SODIMM with a maximum of 4GB system memory. Moreover, AHP-2122 has two COM ports, four USB ports (two in front), one Line-out and one VGA port for plenty of peripheral interfaces. Furthermore, this fanless panel computer supports VGA and DVI-D (no DVI output) for display options.
Applications
- Harsh Environment
- Steel Factory
- Oil Pipe Monitoring
Features
- 12.1″ XGA (1024 x 768) TFT LCD Display
- Intel® Atom™ D525 Processor
- Fanless Operation
- Wide Operation Temperature: -20˚C ~ 60˚C
- IP65 Aluminum Die Cast Front Bezel
- 12.1″ LCD with 1000/500 Nits XGA LED Backlight
- Two Easy Access Front USB Ports
- Power Input Protection:
- -Over-Voltage protection
- -Low-Voltage protection
- -Reverse-Voltage Protection
Specifications [AHP-2122]
| SYSTEM | |
| PROCESSOR | Onboard Intel® Atom™ D525, 1.8 GHz |
| MEMORY | 204-pin DDR3 800 MHz SODIMM x 1, up to 4 GB, default 2 GB RAM inside |
| LCD/CRT CONTROLLER | Integrated in Processor |
| ETHERNET | 10/100/1000Base-TX, RJ-45 x 2 |
| I/O PORT | RS-232 x 1, RS-232/422/485 x 1, USB 2.0 x 4 (2 on front; 2 on rear), Line-out x 1, VGA x 1 |
| STORAGE DISK DRIVE | 2.5″ SATA HDD/ CompactFlash™ Slot (Internal) |
| EXPANSION SLOT | Mini-Card x 1 |
| OS SUPPORT | Windows® XP , Windows® 7, Windows® CE, Linux Fedora |
| MECHANICAL | |
| CONSTRUCTION | IP65/ NEMA4 aluminum die cast front bezel & metal chassis |
| MOUNTING | Panel mount/ Wallmount/ VESA 100/ Desktop |
| DIMENSION | 13.6” x 10.46” x 3.58” (345.6mm x 265.7mm x 91mm) |
| CARTON DIMENSION | 17.9” x 15.75” x 12.6” (455mm x 400mm x 320mm) |
| GROSS WEIGHT | 19.8 lb (9 kg) |
| NET WEIGHT | 15.4 lb (7 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C), w/o airflow |
| STORAGE TEMPERATURE | -4°F ~ 158°F (-20°C ~ 70°C) |
| STORAGE HUMIDITY | 10~95% @ 40°C, non-condensing |
| VIBRATION | 1 Grms/5~500Hz/ random operation (HDD) |
| SHOCK | 20 G peak acceleration (11 msec. duration) |
| EMC | CE/FCC class A |
| POWER SUPPLY | |
| DC INPUT | DC 9~30V input: Over-Voltage protection; Low-voltage protection; Reverse-voltage protection |
| LCD | |
| DISPLAY TYPE | 12.1″ TFT-LCD |
| MAX. RESOLUTION | 1024 x 768 |
| MAX. COLORS | 262k colors |
| LUMINANCE | HTT: 500 cd/m² , STT: 1000 cd/m² |
| VIEWING ANGLE | HTT: 160°(H)/160°(V), STT: 160°(H)/140°(V) |
| BACK LIGHT | HTT: LED, STT: LED |
| BACK LIGHT MTBF (HOURS) | HTT: 50,000, STT: 100,000 |
| TOUCHSCREEN | |
| TYPE | 5-wire, analog resistive |
| LIGHT TRANSMISSION | 80% |
| LIFE TIME | 10 million activations |
Ordering Information [AHP-2122]
| PART NUMBER | TF-AHP-2122HTT-A2-1011 | TF-AHP-2122STT-A2-1011 |
|---|---|---|
| DISPLAY TYPE | 12.1″ TFT-LCD | 12.1″ TFT-LCD |
| MAX. RESOLUTION | 1024 x 768 | 1024 x 768 |
| LUMINANCE | 500 cd/m² | 1000 cd/m² |
| VIEW ANGLE | 160°(H)/160°(V) | 160°(H)/ 140°(V) |
| BACKLIGHT MTBF (HOURS) | 50,000 | 100,000 |
| CPU | Intel® Atom™ D525-1.8 GHz | Intel® Atom™ D525 – 1.8 GHz |
| LAN | 2 | 2 |
| USB | 4 | 4 |
| RS-232 | 1 | 1 |
| RS- 485/422/232 | 1 | 1 |
| STORAGE | CF kit x 1 SATA-HDD kit x 1 | CF kit x 1 SATA-HDD kit x 1 |
| RAM | 2 GB | 2 GB |
| DISPLAY | VGA x 1 | VGA x 1 |
| EXPANSION | Mini-Card x 1 | Mini-Card x 1 |
| MOUNTING | Desktop/ Wallmount/ VESA 100/ Panel mount | Desktop/ Wallmount/ VESA 100/ Panel mount |
| POWER | DC 9~30 V | DC 9 ~ 30 V |
| TEMP. | -20°C~60°C(w/o air) | -20°C~60°C (w/o air) |
| TOUCH | 5-wire resistive | 5-wire resistive |
Packing List
- Phoenix Power Connector
- Mounting Brackets and Screws
- Product DVD
- AHP-2122
Optional Accessories
| Part Number | Description |
| 1702031802 | Power Cord (US Type) |
| 1702031803 | Power Cord (European Type) |
| 170203180E | Power Cord (Japanese Type) |
| 1255900841 | 12V 84W Power Adapter w/ 3-pin Terminal Block |
| ARM-WK075-0 | Wallmount Kit |
