Máy tính công nghiệp Panel PC AAEON- AHP-2153
- 15″ Rugged Fanless Touch Panel Computer with Onboard Intel® Atom™ D2550 Processor
- Hoạt động liên tục 24/7
- Bảo hành 24 tháng

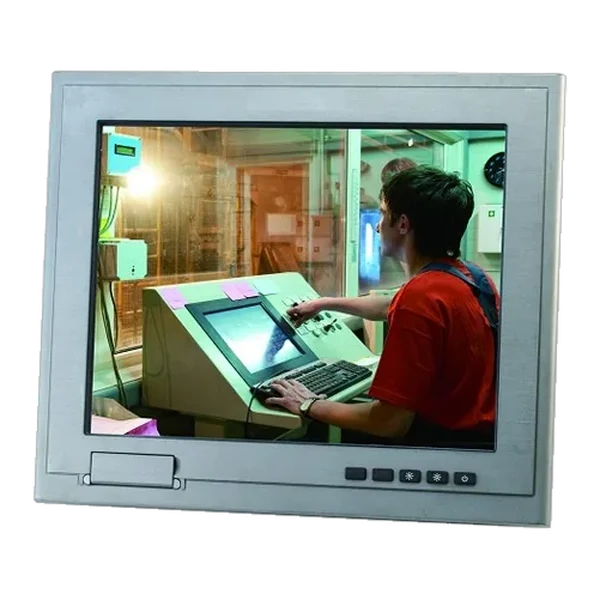

Máy tính công nghiệp Panel PC Aaeon AHP-2153 (15 inch)
Máy tính công nghiệp Panel PC Aaeon AHP-2153 (15 inch)
Overview
The AHP-2153 fanless panel PC is rugged designed for wide operation temperature of -20°C ~ 60°C application use.
With IP65 aluminum die cast front bezel protection from water, moisture, dust, and heat. Wide range power input provide and
Power input protection fulfill customer need in their application. AHP-2153 is your best choice panel pc for industrial automation application.
Applications
- Harsh Environment
- Steel Factory
- Oil Pipe Monitoring
Features
- 15″ XGA (1024 x 768) TFT LCD Display
- Intel® Atom™ D2550 Processor
- Fanless Operation
- Wide Operation Temperature: -20˚C ~ 60˚C
- IP65 Aluminum Die Cast Front Bezel
- 15” LCD with 400 Nits XGA LED Backlight
- Two Easy Access Front USB Ports
- Power Input Protection:Over-Voltage Protection/ Low-Voltage Protection/ Reverse-Voltage Protection
Specifications [AHP-2153]
| SYSTEM | |
| PROCESSOR | Onboard Intel® Dual Core™ Atom™ D2550 |
| MEMORY | 204-pin DDR3 SODIMM x 1, up to 4 GB, default 2 GB |
| LCD/CRT CONTROLLER | Integrated in processor |
| ETHERNET | 10/100/1000Base-TX, RJ-45 x 2 |
| I/O PORT | RS-232 x 2, RS-232/422/485 x 1, USB 2.0 x 4 (2 on front; 2 on rear), Line-out x 1, VGA x 1 |
| STORAGE DISK DRIVE | 2.5″ SATA HDD/ CFast™ slot (internal) |
| EXPANSION SLOT | Mini-Card x 1 |
| OS SUPPORT | Windows® XP Embedded, Windows® XP, Windows® 7 32-bit, Windows® Embedded Standard 7 32-bit, Linux kernel 2.6.3 or above |
| MECHANICAL | |
| CONSTRUCTION | IP65/ NEMA4 aluminum die cast front bezel & aluminum chassis |
| MOUNTING | Desktop/ VESA100/ Rackmount/ Wallmount/ Panel mount |
| DIMENSION | 15.35” x 12.74” x 3.08” (389.98mm x 323.48mm x 78.3mm) |
| CARTON DIMENSION | 20.08” x 9.84” x 18.11” (510mm x 250mm x 460mm) |
| GROSS WEIGHT | 18.96 lb (8.62 kg) |
| NET WEIGHT | 13.64 lb (6.2 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 149°F (-20°C ~ 65°C) w/ airflow -4°F ~ 140°F (-20°C ~ 60°C) w/o airflow |
| STORAGE TEMPERATURE | -4°F ~ 158°F (-20°C ~ 70°C) |
| STORAGE HUMIDITY | 10~95% @ 40°C, non-condensing |
| VIBRATION | 1 Grms/ 5~500Hz/ random operation (HDD) |
| SHOCK | 20 G peak acceleration (11 msec. duration) |
| EMC | CE/FCC class A |
| POWER SUPPLY | |
| DC INPUT | DC 9 ~ 30V input Over-Voltage protection; Low-voltage protection; Reverse-voltage protection |
| LCD | |
| DISPLAY TYPE | 15″ TFT-LCD |
| MAX. RESOLUTION | 1024 x 768 |
| MAX. COLORS | 16.7M colors |
| LUMINANCE | HTT: 450 cd/m², STT: 800 cd/m² |
| VIEWING ANGLE | 160°(H)/ 140°(V) |
| BACK LIGHT | LED |
| BACK LIGHT MTBF (HOURS) | HTT: 50,000, STT: 100,000 |
| TOUCHSCREEN | |
| TYPE | 5-wire resistive |
| LIGHT TRANSMISSION | 80% |
| LIFE TIME | 10 million activations |
Ordering Information [AHP-2153]
| PART NUMBER | TF-AHP-2153HTT-A2-1013 | TF-AHP-2153STT-A2-1013 |
|---|---|---|
| DISPLAY TYPE | 15″ TFT-LCD | 15″ TFT-LCD |
| MAX. RESOLUTION | 1024 x 768 | 1024 x 768 |
| LUMINANCE | 450 cd/m² | 800 cd/m² |
| VIEW ANGLE | 160°(H)/ 140°(V) | 160°(H)/ 140°(V) |
| BACKLIGHT MTBF (HOURS) | 50,000 | 100,000 |
| CPU | Intel® Atom™ D2550 – 1.86 GHz | Intel® Atom™ D2550 – 1.86 GHz |
| LAN | 2 | 2 |
| USB | 4 | 4 |
| RS-232 | 2 | 2 |
| RS-485/422/232 | 1 | 1 |
| STORAGE | CFast™ kit x 1 SATA-HDD kit x 1 | CFast™ kit x 1 SATA-HDD kit x 1 |
| RAM | 2GB | 2GB |
| DISPLAY | VGA x 1 | VGA x 1 |
| EXPANSION | Mini-Card x 1 | N/A |
| MOUNTING | Desktop/Wallmount/ VESA 100/ Panel mount | Desktop/Wallmount/ VESA 100/ Panel mount |
| POWER | DC 9 ~30 V | DC 9 ~30 V |
| TEMP. | -20°C~60°C (w/o air) | -20°C~60°C (w/o air) |
| TOUCH | 5-wire resistive | 5-wire resistive |
Packing List
- Phoenix Power Connector
- Mounting Brackets and Screws
- Product DVD
- AHP-2153
Optional Accessories
| Part Number | Description |
| 1702031802 | Power Cord (US Type) |
| 1702031803 | Power Cord (European Type) |
| 170203180E | Power Cord (Japanese Type) |
| 1255900841 | 12V 84W Power Adapter w/ 3-pin Terminal Block |
| ARM-WK075-0 | Wallmount Kit |
| 9761315502 | Rackmount Kit for AHP-2153 without Carton |
| 9761315503 | Rackmount Kit for AHP-2153 with Carton |
| 9761115400 | WiFi Module b/g/n |
| 9761215301 | (TF) USB GPS Kit (LS20020), For AHP-2153 |
| 9761215302 | (TF) 3G & GPS Kit (EM820W), For AHP-2153 |
