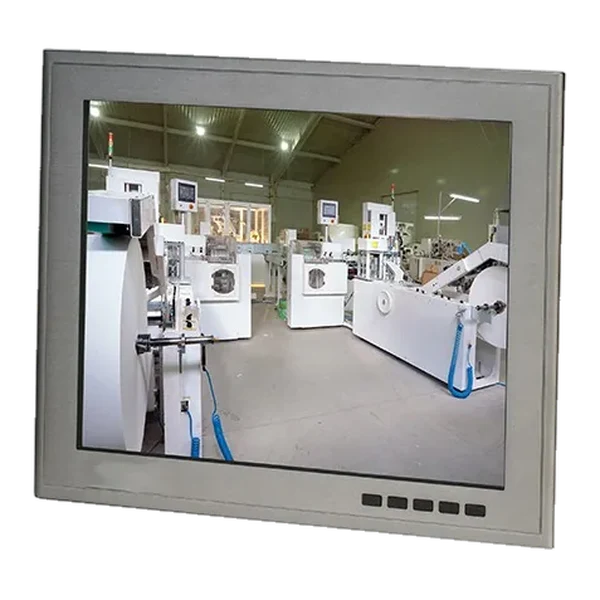

Máy tính công nghiệp Panel PC Aaeon AHP-2173 (17 inch)

Overview

• The AHP-2173 operator panel is an Intel® Atom™ D2550 1.86 GHz processor computer that is designed to serve as a human machine interface (HMI). It is a PC-based system with 17″ color TFT LCD display, onboard Ethernet controller, multi-COM port interfaces and an audio controller. With a built-in CFast™ socket, the AHP-2173 is as compact and user friendly as a multi-function computer. In addition, its “fit anywhere” design makes it very flexible and able to be used in many different kinds of installations. It can be Panel/ VESA 100/ wall mounted.
• For system integrators, this simple, complete, compact and highly integrated system let you easily build an operator panel into your applications. Common industrial applications include factory automation systems, precision machinery, and production process control. It is also suitable for many non-industrial applications, including vending machine, and car park automation. Our operator panel is a reliable, cost-effective solution to your application’s processing requirements.

Applications

• Harsh Environment,
• Factory Automation,
• Oil Pipe Monitoring

Features

• 17” SXGA (1280 x 1024) TFT LCD Display
• Intel® Atom™ D2550 Processor, 1.86 GHz
• Fanless Operation
• Aluminum Die Cast Front Bezel
• IP65 Front Bezel
• Power Input Protection:
• -Over-Voltage Protection
• -Low-Voltage Protection
• -Reverse-Voltage Protection

Specifications [AHP-2173]

SYSTEM
PROCESSOR	Onboard Intel® Atom™ D2550, 1.86 GHz
MEMORY	204-Pin DDR3 SODIMM x 2 up to 4 GB, default 2 GB
LCD/CRT CONTROLLER	Integrated in NM10
ETHERNET	10/100/1000Base-TX, RJ-45 x 2
I/O PORT	RS-232 x 2, RS-232/422/485 x 1, USB 2.0 x 2, Line-out, VGA out x 1
STORAGE DISK DRIVE	2.5″ SATA HDD/ CFast™ slot (internal)
EXPANSION SLOT	Mini-Card x 1
OS SUPPORT	Windows® XP Embedded, Windows® XP, Windows® 7 32-bit, Windows® Embedded Standard 7 32-bit, Linux kernel 2.6.3 or above
MECHANICAL
CONSTRUCTION	IP65/ NEMA4 aluminum die cast front bezel & aluminum chassis
MOUNTING	Panel mount/ Desktop/ VESA100/ Wallmount
DIMENSION	16.56”(W) x 14.08”(H) x 2.87”(D) (420mm x 358mm x 73mm)
CARTON DIMENSION	26.02”(W) x 19.53”(H) x 8.11”(D) (661mm x 496mm x 206mm)
GROSS WEIGHT	18.7 lb (8.5 kg)
NET WEIGHT	13.2 lb (6 kg)
ENVIRONMENTAL
OPERATING TEMPERATURE	-4°F ~ 140°F (-10°C ~ 60°C) w/ airflow -4°F ~ 131°F (-10°C ~ 55°C) w/o airflow
STORAGE TEMPERATURE	-20°F ~158°F (-20°C ~ 70°C)
STORAGE HUMIDITY	10~95% @40°C, non-condensing
VIBRATION	1 Grms/5-500 Hz/ random operation (HDD)
SHOCK	20 G peak acceleration (11 msec. duration)
EMC	CE/FCC class A
POWER SUPPLY
DC INPUT	DC 9~30V input, w/3-pin terminal block
LCD
DISPLAY TYPE	17″ TFT-LCD
MAX. RESOLUTION	1280 x 1024
MAX. COLORS	16.7M colors
LUMINANCE	350 cd/m²
VIEWING ANGLE	170°(H), 160°(V)
BACK LIGHT	LED
BACK LIGHT MTBF (HOURS)	50000
TOUCHSCREEN
TYPE	5-wire resistive
LIGHT TRANSMISSION	80%
LIFE TIME	10 million activations

Ordering Information [AHP-2173]

PART NUMBER	AHP- 2173HTT-A1-1011
DISPLAY TYPE	17″ TFT-LCD
MAX. RESOLUTION	1280 x 1024
LUMINANCE	350
VIEW ANGLE	170°(H)/ 160°(V)
BACKLIGHT MTBF (HOURS)	50,000
CPU	Intel® Atom™ D2550, 1.86 Ghz
LAN	2
USB	2
RS-232	2
RS-485/422/232	1
STORAGE	Cfast™ (internal) 2.5″ HDD
RAM	2 GB
DISPLAY	VGA x 1
EXPANSION	Mini-Card x 1
MOUNTING	VESA 100/ Wallmount/ Panel mount/ Stand
POWER	DC 9~30V
TEMP.	-10°C ~ 60°C (-4°F ~ 140°F) w/ airflow -10°C ~ 55°C(-4°F ~ 131°F) w/o airflow
TOUCH	5-wire resistive

Packing List

• Phoenix Power Connector
• Mounting Brackets and Screws
• Product DVD
• AHP-2173



Optional Accessories

Part Number	Description
1702031802	Power Cord (US Type)
1702031803	Power Cord (European Type)
170203180E	Power Cord (Japanese Type)
1255900841	12V 84W Power Adaptor w/ 3-pin terminal block
9761115400	WiFi Module b/g/n
ARM-WK075-0	Wallmount Kit
