Máy tính công nghiệp Panel PC ACP-5153
15.6” Fanless Multi-Touch Panel PC with Intel® Atom™ D2550 Processor, 2 GB RAM
- Hoạt động liên tục 24/7
- Bảo hành 24 tháng

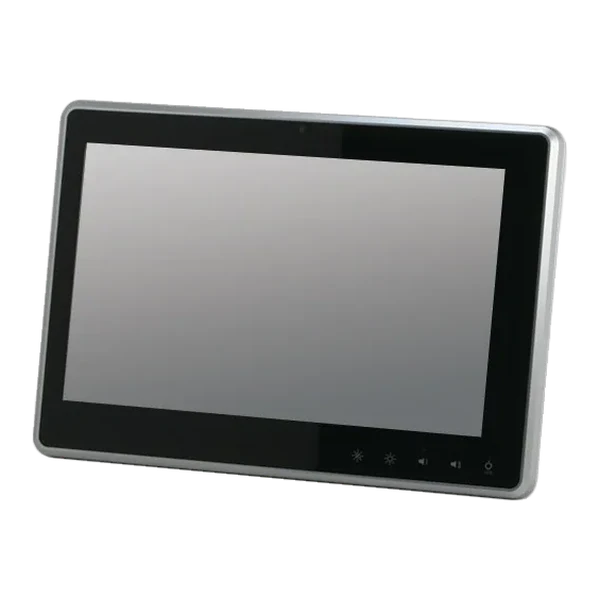

Máy tính công nghiệp Panel PC ACP-5153 ( 15.6 inch)
Máy tính công nghiệp Panel PC ACP-5153 ( 15.6 inch)
Overview
The ACP-5153 Multi-Touch Panel PC supports Intel® Atom™ D2550 1.86 GHz processor. It is a PC-based system with 15.6″ color TFT LCD display, onboard Ethernet controller, multi-I/O port interfaces and an audio controller. The ACP-5153 is a perfect solution for comprehensive lifestyle computing applications.
For system integrators, this simple, complete, compact and highly integrated system let you easily build an operator panel into your applications. Common industrial applications include factory automation systems, precision machinery, and production process control. It is also suitable for many non-industrial applications, including vending machine, and car park automation. Our operator panel is a reliable, cost-effective solution to your application’s processing requirements.
Applications
- Multi-touch
- Infotainment
- Retailer
Features
- 15.6″ (1366 x 768) Color TFT LCD Display
- Intel® Atom™ D2550 Processor
- Widescreen with P-CAP Multi-Touch (2-point)
- 7H Anti-Scratch Surface
- IP65 Compliant Front Bezel
- Fanless Operation
Specifications [ACP-5153]
| SYSTEM | |
| PROCESSOR | Intel® Atom™ D2550 processor, 1.86 GHz |
| SYSTEM MEMORY | DDR3 SODIMM up to 4 GB, default 2 GB |
| LCD/CRT CONTROLLER | Integrated in Intel® NM10 chipset |
| ETHERNET | 10/100/1000Base-TX, RJ-45 x 2 |
| I/O PORT | RS-232 x 1, USB 2.0 x 4 (2 on side, 2 on rear), Line-out x 1, VGA out x 1, RJ-45 x 2, lockable power input connextor, power switch x 1 |
| STORAGE DISK DRIVE | 2.5″ SATA HDD/ CFast™ (internal) |
| EXPANSION SLOT | Mini-PCIe card x 1 |
| OS SUPPORT | Windows® XP 32-bit, Windows® 7 32-bit, Linux kernel 2.6.3 or above |
| MECHANICAL | |
| CONSTRUCTION | IP65 / NEMA 4 plastic front bezel, IPX1 plastic chassis |
| MOUNTING | VESA 75/100 |
| DIMENSION | 15.5″ x 10.7″ x 2.44″ (394mm x 272mm x 62mm) |
| CARTON DIMENSION | 20.47″ x 18.5″ x 9.06″ (520mm x 470mm x 230mm) |
| GROSS WEIGHT | 12.1 lb (5.5 kg) |
| NET WEIGHT | — |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | 32°F ~ 104°F (0°C ~ 40°C) w/o airflow |
| STORAGE TEMPERATURE | -4°F ~ 158°F (-20°C ~ 70°C) |
| STORAGE HUMIDITY | 10%~90% @40°C, non-condensing |
| VIBRATION | 1 Grms/ 5~ 500Hz/ operation – with HDD |
| SHOCK | 20 G peak acceleration (11 msec. duration) – with HDD |
| EMC | CE/FCC class A |
| POWER SUPPLY | |
| DC INPUT | DC12V, with lockable power adapter |
| LCD | |
| DISPLAY TYPE | 15.6″ TFT-LCD, LED |
| MAX. RESOLUTION | 1366 x 768 |
| MAX. COLORS | 16.7M colors (6/8-bit for R,G,B) |
| LUMINANCE | 400 cd/m2 |
| VIEWING ANGLE | 160°(H), 140°(V) |
| BACK LIGHT | LED |
| BACK LIGHT MTBF (HOURS) | 50000 |
| TOUCHSCREEN | |
| TYPE | Projected capacitive multi-touch (2-point) |
| LIGHT TRANSMISSION | 90% |
Ordering Information [ACP-5153]
| PART NUMBER | ACP-5153HTT-A1-1012 |
|---|---|
| DISPLAY TYPE | 15″ TFT-LCD |
| MAX. RESOLUTION | 1366 x 768 |
| LUMINANCE | 400 cd/m2 |
| BACKLIGHT MTBF | 50,000 |
| CPU | Atom™ D2550, 1.86 GHz |
| LAN | 2 |
| USB 2.0 | 6 |
| RS-232 | 1 |
| RS- 232/422/485 | — |
| STORAGE | CFast™ x 1 2.5″ SATA HDD x 1 |
| RAM | 2 GB |
| DISPLAY | VGA x 1 |
| EXPANSION | Mini-Card x 1 |
| MOUNTING | VESA 75/100 |
| POWER | DC 12V |
| TEMP. | 0°C ~ 40°C (w/o airflow ) |
| TOUCH | Projected capacitive multi-touch (2-point) |
Packing List
- HDD Screws
- VESA Screws
- Power Adapter
- Product DVD
- ACP-5153
Optional Accessories
| Part Number | Description |
| 1702031802 | Power Cord (US Type) |
| 1702031803 | Power Cord (European Type) |
| 170203180E | Power Cord (Japanese Type) |
| P005212000 | Plastic Cover for Cables |
| ARM-WK075-0 | Wallmount Kit |
| 9761115400 | Wireless Module (b/g/n) |
| PER-M20 | Desktop Stand w/VESA 75/100 |
| AP-OT9789LA1000 | Desktop Stand w/VESA75/100 |
| Note | If you want to install more than 2 optional accessories, you have to disable one USB port. Please check with your sales representative if needed. |
Chính sách bán hàng
- Bảo hành 24 tháng
- Miễn phí dịch vụ lắp đặt, tư vấn sử dụng tại Tp. Hồ Chí Minh
- Miễn phí dịch vụ bảo trì on-site trong vòng 1 năm tại Tp. Hồ Chí Minh (không bao gồm các huyện ngoại thành). Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.
- Dịch vụ lắp đặt, bảo trì on-site tại các tỉnh thành khác vui lòng liên hệ để được báo giá.
