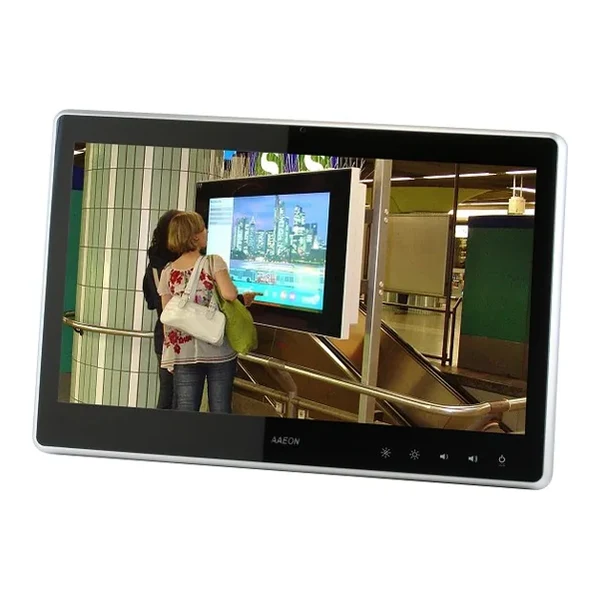

Máy tính công nghiệp Panel PC ACP 5182 ( 18.5 inch)

Máy tính công nghiệp Panel PC ACP-5182

18.5″ Fanless Multi-Touch Window Computer with Onboard Intel® Dual Core Atom™ D510 Processor

  • Hoạt động liên tục 24/7
  • Bảo hành 24 tháng

Máy tính công nghiệp  ( 18.5 inch)

Overview

The ACP-5182 18.5” Fanless Multi-Touch Window Computer is powered by the economical and robust Intel Dual Core Atom D510 Processor with the Intel® ICH8M Chipset. This model is quiet and can be served in applications that require no ventilation or sound, such as hospitals and wafer factories. Moreover, it has one DDR2 SODIMM memory (up to 2 GB). The LCD/CRT Controller is integrated in the Processor, making the Intel® Atom™ D510 multi-functional. For the Storage Disk Drive, the ACP-5182 has one 2.5″” SATA Hard Disk Drive and one CompactFlash™ Slot (Internal). The ACP-5182 also offers flexible I/O ports, including one RS-232, one RS-232/422/485, six USB 2.0, one Line-out, and one VGA connector. For even more expansion, the ACP-5182 is fitted with two Mini Cards.

The ACP-5182 is equipped with flexible expansions, such as MSR/ RFID/ Scanner/ Smart Card Reader/ and even a Skype Phone that can be applied to various applications to meet versatile demands. In addition, it supports G-sensor screen rotation. As AAEON is one of the first companies to incorporate Projected Capacitive Multi-Touch screen into Digital Signage and POS/KIOSK applications, the ACP-5182 has been widely known as a novelty product in these vertical markets. Key proponents of the ACP-5182 are its Multi-Touch Window Design, Anti-scratch 7H Surface, IP-65 Front Bezel and IPx1 Back Chassis.. Customers can rotate the screen based on different applications. With its five year + life cycle, the ACP-5182 Fanless Multi-Touch Window Computer is guaranteed to fit your application needs.

Applications

  • Multi-touch
  • Infotainment
  • Retailer

Features

  • 18.5″ WXGA (1366 x 768) Fanless TFT LCD Display
  • Onboard Intel® Dual Core Atom™ D510 Processor
  • Easy-To-Clean: Multi-Touch Window Design (Two-Point)
  • IP65 Front Bezel & IPX1 Back Chassis
  • Anti-Scratch Surface (7H Hardness)
  • Smart Card Reader/ MSR/ Camera Support (Optional)
may-tinh-cong-nghiep-acp-5182
máy tính công nghiệp acp-5182

Specifications [ACP-5182]

SYSTEM
PROCESSOR Onboard Intel® Dual Core Atom™ D510 1.66 GHz
SYSTEM MEMORY DDR2 SODIMM x 1, up to 2 GB, Default: 1 GB
LCD/CRT CONTROLLER Integrated in Processor
ETHERNET 10/100/1000Base-TX, RJ-45 x 2
I/O PORT RS-232 x 1, RS-232/422/485 x 1, USB2.0 x 6 (2 on side; 4 on rear),
Line-out x 1, VGA x 1
STORAGE DISK DRIVE 2.5″ SATA Hard Disk Drive x 1/ CompactFlash™ Slot (Internal) x 1
EXPANSION SLOT Mini-Card x 2
OS SUPPORT Windows® XP (T/S: Single point), Linux Fedora (T/S: Multi-point), Windows® 7 (T/S: Multi-point)
MECHANICAL
CONSTRUCTION IP65/ NEMA4 for plastic front bezel, IPx1 for plastic chassis
MOUNTING VESA 75/100
DIMENSION 18.11” x 12.2” x 2.34” (460mm x 310mm x 59.4mm)
CARTON DIMENSION 26” x 19.53” x 7.87” (661mm x 496mm x 200mm)
GROSS WEIGHT 16.06 lb (7.3 kg)
NET WEIGHT 11 lb (5 kg)
ENVIRONMENTAL
OPERATING TEMPERATURE 32°F ~ 104°F (0°C ~ 40°C)
STORAGE TEMPERATURE -4°F ~ 158°F (-20°C ~ 70°C)
STORAGE HUMIDITY 10%~95% @ 40°C; non-condensing
VIBRATION 1 g rms/ 5~500 Hz/ Random operation (HDD)
SHOCK 20 G peak acceleration (11 msec. Duration)
EMC CE/FCC Class A
POWER SUPPLY
DC INPUT DC 12V, with AC power adapter with lock (in package)
LCD
DISPLAY TYPE 18.5″ TFT-LCD, LED
MAX. RESOLUTION 1366 x 768
MAX. COLORS 16.7M colors (6/8-bit for R,G,B)
LUMINANCE 300 cd/m2
VIEWING ANGLE 170°(H), 160°(V)
BACK LIGHT CCFL
BACK LIGHT MTBF (HOURS) 50000
TOUCHSCREEN
TYPE Projected Capacitive Multi-Touch (Windows® 7)
LIGHT TRANSMISSION 90%

Ordering Information [ACP-5182]

PART NUMBER TF-ACP-5182HTT-A1-1010
DISPLAY TYPE 18.5″ TFT- LCD
MAX. RESOLUTION 1366 x 768
LUMINANCE 2
VIEW ANGLE 170(H), 160V
BACKLIGHT MTBF (HOURS) 50,000
CPU Intel® Atom™ D510, 1.66 GHz
LAN 2
USB 6
RS-232 1
RS- 485/422/232 1
STORAGE CF Kit x 1 SATA-HDD Kit x 1
RAM 1 GB
DISPLAY VGA x 1
EXPANSION Mini-Card x 1
MOUNTING VESA 75/100
POWER DC 12V
TEMP. 0°C ~ 40°C (w/o air)
TOUCH Projective Capacitive multi- Touch (Two Points )

Packing List

  • HDD Screws
  • VESA Screws
  • Power Adapter
  • Product DVD
  • ACP-5182



Optional Accessories

• ARM-WK075-0 Wallmount Kit
• 1702031802 Power Cord (US Type)
• 1702031803 Power Cord (European Type)
• 170203180E Power Cord (Japanese Type)
• 9761518200 Smart Card Reader
• 9761518201 Camera
• 9761518206 MSR + Mounting Kit
• 9761518205 Scanner (2D) + Mounting Kit
• P005182010 Plastic Cover for Cables
• 9761215303 Wireless Module (b/g/n)
• 9761518209 RFID Module (13.56MHz)
• PER-M20 Desktop Stand w/VESA 75/100

Chính sách bán hàng

  • Bảo hành 24 tháng
  • Miễn phí dịch vụ lắp đặt, tư vấn sử dụng tại Tp. Hồ Chí Minh
  • Miễn phí dịch vụ bảo trì on-site trong vòng 1 năm tại Tp. Hồ Chí Minh (không bao gồm các huyện ngoại thành). Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.
  • Dịch vụ lắp đặt, bảo trì on-site tại các tỉnh thành khác vui lòng liên hệ để được báo giá.
