OMNI Series Modules- I/O Modules
Ordering Information [OMNI SERIES MODULES- I/O MODULES] -OP- 1

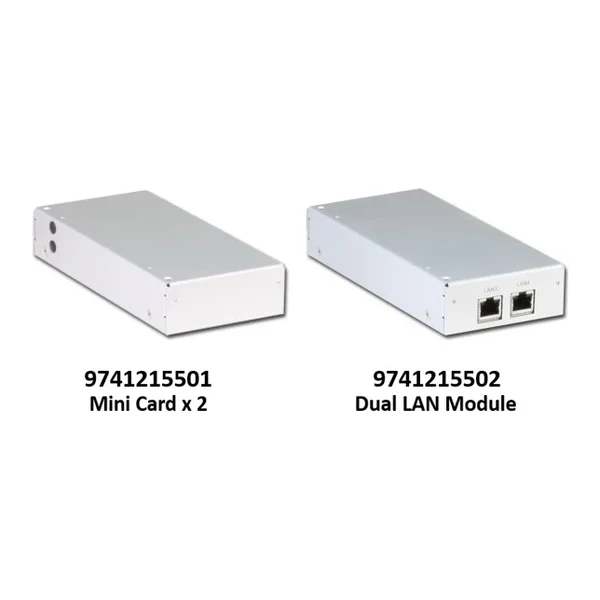

PART NUMBER | 9741215501 | 9741215502 | 9741215503 | 9741215504 | 9741215504 |
PRODUCT DESCRIPTION | WiFi & SIM Card Module (Mini-Card WiFi Module is not Included) | Dual LAN Module | USB / COM / LAN Module | COM Port Module | Isolated COM Port module |
FEATURES | ■ MiniCard x 2 | ■ Intel 10/100/1000 Giga LAN x 2 | ■ USB2.0 x 2 | ■ RS-232/422/485 x 4 (Selectable by jumper) | ■ Isolated RS-232/422/485 x 4 (Selectable by jumper) |
■ SIMCard x 2 | ■ RS-232/422/485 x 2 (Selectable by | ■ 2k Vdc Isolation | |||
external switch) | |||||
■ Intel 10/100/1000 Giga LAN x 1 | |||||
OS SUPPORT | Window® 7 | Window® 7 | Window® 7 | Window® 7 | Window® 7 |
Window® 8.1 | Window® 8 | Window® 8.1 | Window® 8.1 | Window® 8.1 | |
Window® 10 | Window® 10 | Window® 10 | Window® 10 | Window® 10 | |
Linux Kernal 2.6.x or above | Linux Kernal 2.6.x or above | Linux Kernal 2.6.x or above | Linux Kernal 2.6.x or above | Linux Kernal 2.6.x or above | |
CONSTRUCTION | SECC Design | SECC Design | SECC Design | SECC Design | SECC Design |
DIMENSION | 161*80*31 mm | 161*80*31 mm | 161*99*56 mm | 161*99*56 mm | 161*99*56 mm |
PART NUMBER | 9741215506 | 9741215507 | 9741215508 | 9741215510 | 9741215511 |
PRODUCT DESCRIPTION | DIO Module | CAN Bus Module | Audio Module | HMS Kit | DIOx16 Module |
FEATURES | ■ Digital I/O x 8 | ■ CAN Bus with Phoenix connectors | ■ Mic-in | ■ 10/100 Ethernet x 2, Anybus | ■ Isolated RS-232/422/485 x 4 |
■ 2k Vdc Isolation | ■ Line-out | ■ Support All Major Industrial Ethernet and Fieldbus Networks | ■ Digital I/O x 8 | ||
■ Support plug and play after | ■ Support plug and play after | * Due to communication protocol limit, only for EU region | |||
installing driver | installing driver&reboot | ||||
OS SUPPORT | Window® 7 | Window® 7 | Window® 7 | Window® 7 | Window® 7 |
Window® 8.1 | Window® 8.1 | Window® 8.1 | Window® 8.1 | Window® 8.1 | |
Window® 10 | Window® 10 | Window® 10 | Window® 10 | Window® 10 | |
Linux Kernal 2.6.x or above | Linux Kernal 2.6.x or above | Linux Kernal 2.6.x or above | Linux Kernal 2.6.x or above | Linux Kernal 2.6.x or above | |
CONSTRUCTION | SECC Design | SECC Design | SECC Design | SECC Design | SECC Design |
DIMENSION | 161*80*31 mm | 161*80*31 mm | 161*80*31 mm | 161*80*31 mm | 161*99*56 mm |
