• The AEC-6637 fanless embedded computer system, powered by the 3rd Generation Intel Core i7/ i5 processor, is one of the most compact and powerful models of its kind. Also featured is the latest Tri-Gate transistors and 22nm technology, with integrated HD4000 graphics that nearly doubles the graphics performance over its predecessor, complimented by the latest Intel® QM77 chipset offering more I/O interfaces and faster connectivity. High performance and the fastest connectivity, the AEC-6637 serve performance demanding applications such as industrial automation, building automation and transportation markets which typically have space constraints.
• The AEC-6637 comes with a DDR3 1066/1333/1600MHz SODIMM slot to support a maximum of 8GB of memory. Featuring superior connectivity with two 5 Gb/sec USB3.0 ports, one Full HD display via VGA, two Gigabit Ethernet, three RS-232 ports, one RS-232/422/485 port, one Line-out, the AEC-6637 provides extremely fast connections for enhanced efficiency with rich I/Os. The AEC-6637 offers a 6 Gb/sec SATAIII connector that can support a 2.5” HDD for storage and also offers a CFast slot that can support a Cfast card for storage. Optional wireless features can be added via a PCIe 3.0 mini-Card slot that supports 802.11b/g/n and Bluetooth™ 3.0. Designed with a wide voltage input range of DC 9~30V and offering four types of power protection: Over-Voltage, Low-Voltage, Short Circuit and Surge Protection, the AEC-6637 is well protected to operate in harsh environments that have unsteady power supply or variance in grounding. The powerful and passively cooled AEC-6637 embedded computer can operate in -10°C ~60°C (with airflow) environments

Features

• 3rd Generation Intel® Core™ i7-3610QE, Core ™ i5-3610ME Processor
• Intel QM77 Chipset
• Intel HD Graphics 4000
• VGA x 1
• Gigabit Ethernet x 2
• COM x 4
• USB3.0 x 2 USB2.0 x 2
• 2.5” SATA 6.0 Gb/s Hard Disk Drive Bay
• Fanless Operation
• AAEON’s Hi-Safe & Hi-Manager Support

Specifications [AEC-6637]



SYSTEM
CPU	Intel® 3rd Generation Core™ i7-3610QE, 2.3 GHz
	Intel® 3rd Generation Core™ i5-3610ME, 2.7 GHz
CHIPSET	Intel® QM77
SYSTEM MEMORY	DDR3 1066/1333 SODIMM slot x 1, up to 8 GB
DISPLAY INTERFACE	VGA, DVI-D (C1 / C2)
STORAGE DEVICE	CFast™, HDD/SSD
ETHERNET	Intel® 82579LM, 10/100/1000Base-TX x 1
	Realtek RTL-8111E, 10/100/1000Base-TX x 1
I/O	RS-232/422/485 x 1
	RS-232 x 3
	USB 2.0 x 2
	USB 3.0 x 2
	VGA x 1
	DVI-D x 1 (C1 / C2)
	Line-out x 1
	LAN x 2
	Antenna holes x 2
	Power switch
	Power input
EXPANSION	Full-size Mini-Card x 1
INDICATOR	Power LED
	HDD active LED
OS SUPPORT	Windows® 10, Windows® 8.1 (32/64-bit), Windows® 7(32/64-bit), WES7/WES8, Linux Ubuntu 14.04/ Kernel 3.13.0
POWER SUPPLY
POWER REQUIREMENT	9 – 30V with 3-pin terminal block
MECHANICAL
MOUNTING	Wallmount
DIMENSIONS (W X H X D)	8.35″ x 2.53″ x 6.14″ (212.2mm x 64.3mm x 156mm)
GROSS WEIGHT	7.94 lb (3.6 kg)
NET WEIGHT	6.0 lb (2.7 kg)
ENVIRONMENTAL
OPERATING TEMPERATURE	-15°C ~ 50°C with wide temperature CFast™ card
	-15°C ~ 55°C with wide temperature HDD
	(according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial devices)
STORAGE TEMPERATURE	-20°C ~ 70°C
STORAGE HUMIDITY	95% @ 40°C, non-condensing
ANTI-VIBRATION	5 Grms/ 5 ~ 500Hz/ operation –CFast™ card
	1 Grms/ 5~ 500Hz/ operation – HDD
CERTIFICATION	CE/FCC class A

Ordering Information [AEC-6637]



PART NUMBER	AEC-6637-C1-1010	AEC-6637-C2-1010	TF-AEC-6637-A1M-1010	TF-AEC-6637-A2M-1010
CPU	Intel® Core™ i7-3610QE 2.3 GHz	Intel® Core™ i5-3610ME 2.7 GHz	Intel® Core™ i5-3610ME 2.7 GHz	Intel® Core™ i7-3610QE 2.3 GHz
RAM	_	_	_	_
LAN	2	2	2	2
USB	4	4	4	4
RS- 232	3	3	3	3
RS- 232/422/485	1	1	1	1
STORAGE	CFast™ x 1	CFast™ x 1	CFast™ x 1	CFast™ x 1
	HDD x 1	HDD x 1	HDD x 1	HDD x 1
ACCESSORY CABLES	_	_	_	_
DISPLAY	VGA x 1,	VGA x 1,	VGA x 1	VGA x 1
	DVI-D x 1	DVI-D x 1
EXPANSION	Mini-Card x 1	Mini-Card x 1	Mini-Card x 1	Mini-Card x 1
MOUNTING	Wallmount	Wallmount	Wallmount	Wallmount
POWER	DC 9-30V	DC 9-30V	DC 9-30V	DC 9-30V
TEMP.	5°F ~ 122°F (-15°C ~ 50°C) W/T CFast™ (with AirFlow)	5°F ~ 122°F (-15°C ~ 50°C) W/T CFast™ (with AirFlow)	5°F ~ 122°F (-15°C ~ 50°C) W/T CFast™ (with AirFlow)	5°F ~ 122°F (-15°C ~ 50°C) W/T CFast™ (with AirFlow)
	5°F ~ 131°F (-15°C ~ 55°C) W/T HDD (with AirFlow) with industrial grade device (according to IEC68-2-14)	5°F ~ 131°F (-15°C ~ 55°C) W/T HDD (with AirFlow) with industrial grade device (according to IEC68-2-14)	5°F ~ 131°F (-15°C ~ 55°C) W/T HDD (with AirFlow) with industrial grade device (according to IEC68-2-14)	5°F ~ 131°F (-15°C ~ 55°C) W/T HDD (with AirFlow) with industrial grade device (according to IEC68-2-14)

Packing List

• Wallmount Bracket x 2
• Screw Package x 1
• RAM Thermal Pad x 4 (1998F15003 x 1, 1998666630 x 2, 1998666652 x 1)
• Product DVD
• AEC-6637

Optional Accessories

‧ 1255901202	Power Adapter (120W), Output: DC 19V
‧ 1702031802	Power Cord (US Type)
‧ 1702031803	Power Cord (European Type)
‧ 170203180E	Power Cord (Japanese Type)
‧ 9741663703	Dual 2.5” SATA HDD Kit (Removable)
‧ 9741663704	Dual 2.5” SATA HDD Kit
‧ 974166250A	3.5 SATA HDD Kit
‧ 9741663701	2.5 SATA HDD/DVD Kit w/o DVD-ROM
‧ 9741663700	Slim DVD-ROM + 2.5” SATA HDD Kit
‧ 9741663702	I/O Dust Cover Kit
‧ 9741662508	Fan Kit for AIM/A2M
‧ 9741663705	Fan Kit for C1/C2

Chính sách bán hàng

• Bảo hành 24 tháng
• Miễn phí dịch vụ lắp đặt, tư vấn sử dụng tại Tp. Hồ Chí Minh
• Miễn phí dịch vụ bảo trì on-site trong vòng 1 năm tại Tp. Hồ Chí Minh (không bao gồm các huyện ngoại thành). Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.
• Dịch vụ lắp đặt, bảo trì on-site tại các tỉnh thành khác vui lòng liên hệ để được báo giá.

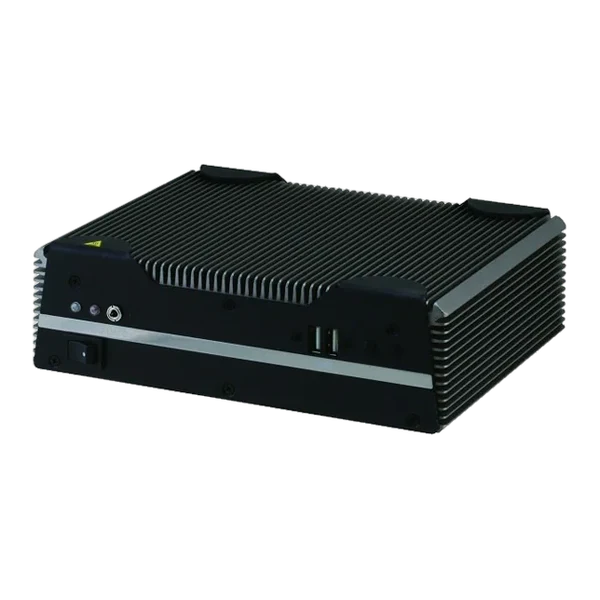

Máy tính công nghiệp không quạt AAEON AEC-6637
