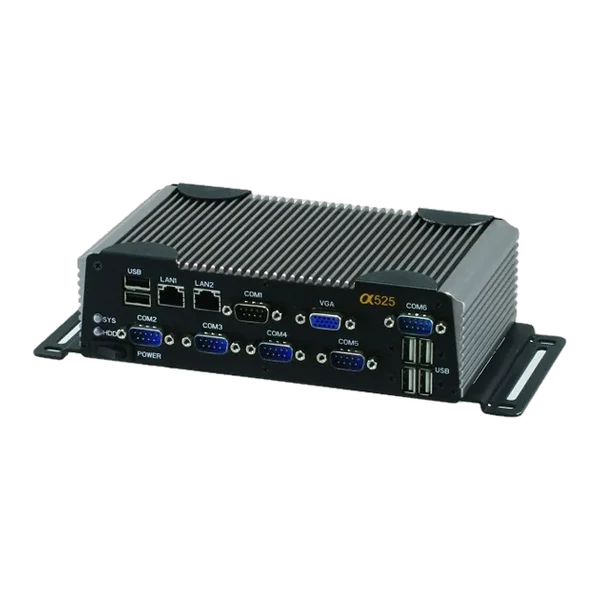

• The AEC-6612 Rev. B fanless embedded computer encompasses the Intel® ICH8M chipset and features the Intel Atom D525 processor. This fanless controller supports up to six USB 2.0 ports, six COM ports, one power switch, one SYS LED, one HDD LED and one CompactFlash™ slot for copious connectivity options. There are also two RJ-45 connectors for fast Gigabit Ethernet. In addition, one Mini Card is provided for expansion capabilities and for storage, the AEC-6612 Rev. B offers a 2.5″” SATA Hard Disk Drive Bay for applications in need of anti-shock and anti-vibration properties. The AEC-6612 Rev. B embedded controller offers Fedora Core 14, Windows® XP, Windows® 7, Windows® 7 32 bit, Windows® XP Embedded/Windows® Embedded Standard 2009 and Windows Embedded Standard 7 for OS support. For graphics support, the AEC-6612 Rev. B has an optional second VGA interface and an optional extension kit.
• The AEC-6612 Rev. B has an AAEON patented passive heat-spreading system technology from the aluminum alloy chassis, which helps protect the controller from over heating. Additionally, because this fanless controller is based on the Intel® D525 processor, the AEC-6612 Rev.B supports Intel® Hyper-Threading Technology for robust computing performance. Furthermore, a range of DC-in for 12V or 9~30V allows OEMs to adapt the AEC-6612 Rev. B to fit any sort of application requirements, such as Digital Signage control systems, Medical, Factory Automation, and In-Vehicle usage. This slim, compact sized box PC has a terrific combination of high performance with low-power and a cost-effective price.

Features

• Intel® Atom™ D525 Processor
• Intel ICH8M Chipset
• Up to COM x 6, USB x 6
• Wide DC power Input
• Fanless Operating System
• Gigabit Ethernet x 2
