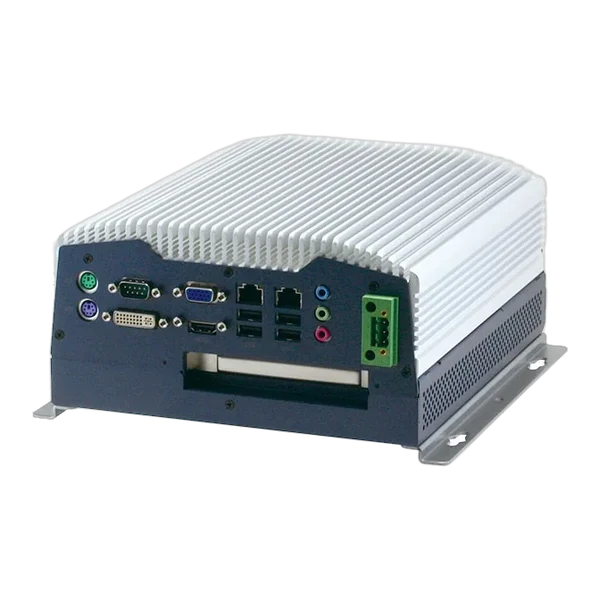

Máy tính công nghiệp không quạt Aaeon AEC 6876

Overview

Fanless Embedded Controller With Intel® Core™ i7/ i5 /i3 /Celeron® Processor and PCI-Express Expansion

Features

Intel® Core™ i7-2710QE/ i5-2510E/ i3-2330E/ Celeron®-B810 Processor
DDR3 SODIMM x 2, Supports DDR3 1066/1333, Max. 16GB
Intel® QM67 Chipset
Gigabit Ethernet x 2
Intel® Integrated Graphics Engine Supports Dual View by VGA, DVI, HDMI, LVDS
COM x 4
PCI x 2, PCI-Express 〔x4〕 x 1
AAEON’s Hi-Safe & Hi-Manager Support (i5/i7 CPU Only)

may-tinh-khong-quat-aec-6876 — máy tính không quạt aec-6876

Specifications [AEC-6876]

SYSTEM
CPU	Intel® Core™ i7-2710QE, 2.1 GHz Intel® Core™ i5-2510E, 2.5 GHz Intel® Core™ i3-2330E, 2.2 GHz Intel® Celeron® B810 1.6 GHz
CHIPSET	Intel® QM67
SYSTEM MEMORY	DDR3 1066/1333 SODIMM slot x 1, up to 16 GB
DISPLAY INTERFACE	VGA, DVI-D, HDMI
STORAGE DEVICE	CFast™, HDD/SSD
ETHERNET	Intel® WG82579LM, 10/100/1000Base-TX x 1 Realtek RTL-8111E, 10/100/1000Base-TX x 1
I/O	RS-232/422/485 x 1 RS-232 x 3 USB 2.0 x 4 VGA x 1 DVI x 1 HDMI x 1 Line-in x 1 Line-out x 1 Mic-in x 1 LAN x 2 PS/2 KB x 1 PS/2 Mouse x 1 PCIe slot x 1 (A Sku) PCI slot x 2 (B Sku) Antenna holes x 2 Power switch Power input
EXPANSION	Full-size Mini-Card x 1 PCIe x 1 (A Sku) PCI x 2 (B Sku)
INDICATOR	Power LED HDD active LED
OS SUPPORT	Windows® 7, Windows® XP Embedded, WES2009,WES 7, Linux Fedora 13 / Kernel 2.6.33.3
POWER SUPPLY
POWER REQUIREMENT	9 – 30V with 3-pin terminal block 12V with DC Jack
MECHANICAL
MOUNTING	Wallmount
DIMENSIONS (W X H X D)	9.37″ x 4.03″ x 7.62″ (223 mm x 107mm x 238mm)
GROSS WEIGHT	13.2 lb (6 kg)
NET WEIGHT	—
ENVIRONMENTAL
OPERATING TEMPERATURE	-15°C ~ 55°C with wide temperature HDD (according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial devices)
STORAGE TEMPERATURE	-20°C ~ 70°C
STORAGE HUMIDITY	95% @ 40°C, non-condensing
ANTI-VIBRATION	5 Grms/ 5 ~ 500Hz/ operation –mSATA / SSD 1 Grms/ 5~ 500Hz/ operation – HDD
CERTIFICATION	CE/FCC class A

Ordering Information [AEC-6876]

PART NUMBER	TF-AEC-6876-A1-1110	TF-AEC-6876-A1M-1110	TF-AEC-6876-A2-1110	TF-AEC-6876-A2M-1110	TF-AEC-6876-A3M-1110	TF-AEC-6876-A4M-1110	TF-AEC-6876-B1M-1110	TF-AEC-6876-B2M-1110	TF-AEC-6876-B3M-1110	TF-AEC-6876-B4M-1110
CPU	Intel® B810 -1.6 GHz	Intel® B810 -1.6 GHz	Intel® Core™ i5-2510E – 2.5 GHz	Intel® Core™ i5-2510E – 2.5 GHz	Intel® Core™ i7-2710QE – 2.1 GHz	Intel® Core™ i3-2330E – 2.2 GHz	Intel® B810 -1.6 GHz	Intel® Core™ i5-2510E – 2.5 GHz	Intel® Core™ i7-2710QE – 2.1 GHz	Intel® Core™ i3-2330E – 2.2 GHz
RAM	2 GB	2 GB	2 GB	2 GB	4 GB	4 GB	2 GB	2 GB	4 GB	2 GB
LAN	2	2	2	2	2	2	2	2	2	2
USB	4	4	4	4	4	4	4	4	4	4
RS-232	3	3	3	3	3	3	3	3	3	3
RS-232/422/485	1	1	1	1	1	1	1	1	1	1
STORAGE	CFast™ kit x 1 HDD kit x 1	CFast™ kit x 1 HDD kit x 1	CFast™ kit x 1 HDD kit x 1	CFast™ kit x 1 HDD kit x 1	CFast™ kit x 1 HDD kit x 1	CFast™ kit x 1 HDD kit x 1	CFast™ kit x 1 HDD kit x 1	CFast™ kit x 1 HDD kit x 1	CFast™ kit x 1 HDD kit x 1	CFast™ kit x 1 HDD kit x 1
ACCESSORY CABLES	—	—	—	—	—	—	—	—	—	—
DISPLAY	HDMI x 1, DVI-D x 1, VGA x 1	HDMI x 1, DVI-D x 1, VGA x 1	HDMI x 1, DVI-D x 1, VGA x 1	HDMI x 1, DVI-D x 1, VGA x 1	HDMI x 1, DVI-D x 1, VGA x 1	HDMI x 1, DVI-D x 1, VGA x 1	HDMI x 1, DVI-D x 1, VGA x 1	HDMI x 1, DVI-D x 1, VGA x 1	HDMI x 1, DVI-D x 1, VGA x 1	HDMI x 1, DVI-D x 1, VGA x 1
EXPANSION	PCIe x 1 Mini-Card x 1	PCIe x 1 Mini-Card x 1	PCIe x 1 Mini-Card x 1	PCIe x 1 Mini-Card x 1	PCIe x 1 Mini-Card x 1	PCIe x 1 Mini-Card x 1	PCI x 2 Mini-Card x 1	PCI x 2 Mini-Card x 1	PCI x 2 Mini-Card x 1	PCI x 2 Mini-Card x 1
MOUNTING	Wallmount	Wallmount	Wallmount	Wallmount	Wallmount	Wallmount	Wallmount	Wallmount	Wallmount	Wallmount
POWER	DC 12V	DC 9-30V	DC 12V	DC 9-30V	DC 9-30V	DC 9-30V	DC 9-30V	DC 9-30V	DC 9-30V	DC 9-30V
TEMP.	0°C ~ 50°C (w/o air)	0°C ~ 50°C (w/o air)	0°C ~ 50°C (w/o air)	0°C ~ 50°C (w/o air)	0°C ~ 50°C (w/o air)	0°C ~ 50°C (w/o air)	0°C ~ 50°C (w/o air)	0°C ~ 50°C (w/o air)	0°C ~ 50°C (w/o air)	0°C ~ 50°C (w/o air)

Packing List

Phoenix Power Connector
M3 x 4mm Screws
6# -32 x 10mm Screws
Wallmount Bracket x 2
Product DVD
AEC-6876

Optional Accessories

‧1255900841	Power Adapter (84W), Output: DC 12V for AEC-6876-A1/A2
‧ 1255901202	Power Adapter (120W), Output: DC 19V-for AEC-6876-A1M/A2M/A3M/A4M/B1M/B2M/B3M
‧ 9741687600	Extend 2nd 2.5” SATA HDD Assemly Kit
‧ 9741687601	Mini Blower Kit for AEC-6876-Bxx/AEC-6877-Axx/AEC-6877-Bxx Factory Install
‧ 9741687602	I/O Dust Cover Kit for AEC-6876
‧ 1702031802	Power Cord (US Type)
‧ 1702031803	Power Cord (European Type)
‧ 170203180E	Power Cord (Japanese Type)
