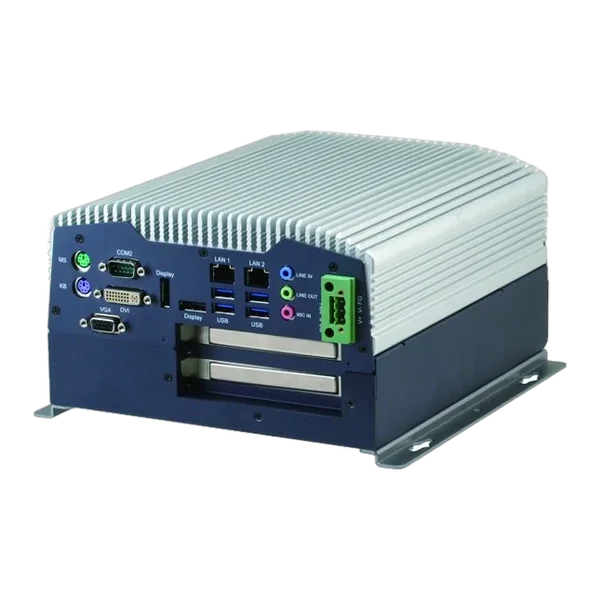

Máy tính công nghiệp không quạt Aaeon AEC 6877
- Fanless Embedded Controller with Intel® Core™ i7/i5/Celeron Processor and PCI/PCIe Expansion
- Hoạt động liên tục 24/7
- Bảo hành 24 tháng
Máy tính công nghiệp không quạt Aaeon AEC 6877
Máy tính công nghiệp không quạt Aaeon AEC 6877
Overview
- The AEC-6877 fanless embedded computer, powered by the 3rd Generation Intel Core i7/ i5/ Celeron processor. Using the latest Tri-Gate transistors and 22nm technology with integrated HD4000 graphics, the AEC-6877 provides nearly double the graphics performance over its predecessor complimented by the latest Intel QM77 chipset providing more I/O interfaces and faster connectivity. With high performance, three independent displays and two PCI/ PCIe expansion slots, the AEC-6877 serves performance and graphic demanding applications targeted factory automation and industrial automation, which requires additional control features via expansion slots.
- The AEC-6877 comes with two DDR3 1066/1333/1600MHz SODIMM slots to support a maximum of 8GB of memory. Featuring superior connectivity with two DisplayPort™, one VGA, one DVI-D, two Gigabit Ethernet, one RS-232 port, one RS-232/422/485 port, one PS/2 Keyboard, one PS/2 Mouse port and independent Mic-in/ Line-in/ Line-out, Optional wireless functions can be added via a mini-Card slot and additional functionality can be added via one PCIe x4 or two PCI expansion slots. This fanless embedded computer provides extremely fast connections for enhanced efficiency with rich I/Os. This powerful machine controlleroffers two 6Gb/sec SATA connectors that can support RAID 0,1,5,10, and a CFast™ slot for external storage. The powerful and passively cooled AEC-6877 embedded computer can operate in 0~60°C (with airflow) environments. Designed with a wide voltage input range of DC 9~30V and offering four types of power protection: Over-Voltage, Low-Voltage, Short Circuit and Surge Protection, the AEC-6877 is well shielded to operate in harsh manufacturing environments with unsteady power supply or variance in grounding.
Features
- Intel® Core™ Intel® i7-3610QE, i5-3610ME/ i7-2710QE, i5-2510E and Celeron® B810 Processor
- Intel QM77 Chipset
- Three Independent Video Output for DisplayPort™ x 2 + VGA or DVI with 3rd Generation Core™ i Series
- USB 3.0 x 4
- PCI x 2 or PCI-Express﹝x4﹞ x 1
- Power Protection: Over Voltage Protection, Low Voltage Protection, Short Circuit Protection, Surge Protection (1000V DC)
- AAEON’s Hi-Safe & Hi-Manager Support (i5/i7 CPU Only)
Specifications [AEC-6877]
| SYSTEM | |
| CPU | Intel® Core™ i7-3610QE, 2.3 GHz Intel® Core™ i7-2710QE, 2.1 GHz Intel® Core™ i5-3610ME, 2.7 GHz Intel® Core™ i5-2510E, 2.5 GHz Intel® Celeron® B810 1.6 GHz |
| CHIPSET | Intel® QM77 |
| SYSTEM MEMORY | DDR3 1066/1333/1600 SODIMM slot x 1, up to 16 GB |
| DISPLAY INTERFACE | VGA, DVI-D, DP |
| STORAGE DEVICE | CFast™, HDD/SSD |
| ETHERNET | Intel® 82579LM, 10/100/1000Base-TX x 1 Intel® 82583V, 10/100/1000Base-TX x 1 |
| I/O | RS-232/422/485 x 1 RS-232 x 1 USB 3.0 x 4 VGA x 1 DVI x 1 DP x 2 Line-in x 1 Line-out x 1 Mic-ic x 1 LAN x 2 PS/2 KB x 1 PS/2 Mouse x 1 PCIe slot x 1 (A Sku) PCI slot x 2 (B Sku) Antenna holes x 2 Power switch Power input |
| EXPANSION | Full-size Mini-Card x 1 PCIe x 1 (A Sku) PCI x 2 (B Sku) |
| INDICATOR | Power LED HDD active LED |
| OS SUPPORT | Windows® 7, Windows® XP Embedded, WES2009,WES 7, Linux Fedora 13 / Kernel 2.6.33.3 |
| POWER SUPPLY | |
| POWER REQUIREMENT | 9 – 30V with 3-pin terminal block |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIMENSIONS (W X H X D) | 10.4″ x 4.84″ x 7.62″ (264.16mm x 123mm x 193.5mm) |
| GROSS WEIGHT | 13.2 lb (6 kg) |
| NET WEIGHT | — |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | 0°C ~ 55°C with wide temperature HDD (according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial devices) |
| STORAGE TEMPERATURE | -20°C ~ 70°C |
| STORAGE HUMIDITY | 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 5 Grms/ 5 ~ 500Hz/ operation –mSATA / SSD 1 Grms/ 5~ 500Hz/ operation – HDD |
| CERTIFICATION | CE/FCC class A |
Ordering Information [AEC-6877]
| PART NUMBER | AEC-6877-A1M-1010 | AEC-6877-A2M-1010 | AEC-6877-A3M-1010 | AEC-6877-A4M-1010 | AEC-6877-A5M-1010 | AEC-6877-B1M-1010 | AEC-6877-B2M-1010 | AEC-6877-B3M-1010 | AEC-6877-B4M-1010 | AEC-6877-B5M-1010 |
|---|---|---|---|---|---|---|---|---|---|---|
| CPU | Intel® Celeron® B810 | Intel® i7-2710QE 2.1 GHz | Intel® i5-2510E 2.7 GHz | Intel® i7-3610QE 2.3 GHz | Intel® i5-3610ME 2.7 GHz | Intel® Celeron® B810 | Intel® i7-2710QE 2.1 GHz | Intel® i5-2510E 2.7 GHz | Intel® i7-3610QE 2.3 GHz | Intel® i5-3610ME 2.7 GHz |
| RAM | 2 GB | 2 GB | 2 GB | 2 GB | 2 GB | 2 GB | 2 GB | 2 GB | 2 GB | 2 GB |
| LAN | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| USB 3.0 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| RS-232 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| RS-232/422/485 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| DIO | — | — | — | — | — | — | — | — | — | — |
| STORAGE | CFast™ x 1 HDD x 1 | CFast™ x 1 HDD x 1 | CFast™ x 1 HDD x 1 | CFast™ x 1 HDD x 1 | CFast™ x 1 HDD x 1 | CFast™ x 1 HDD x 1 | CFast™ x 1 HDD x 1 | CFast™ x 1 HDD x 1 | CFast™ x 1 HDD x 1 | CFast™ x 1 HDD x 1 |
| DISPLAY | VGA x 1, DVI x 1, DP x 2 | VGA x 1, DVI x 1, DP x 2 | VGA x 1, DVI x 1, DP x 2 | VGA x 1, DVI x 1, DP x 2 | VGA x 1, DVI x 1, DP x 2 | VGA x 1, DVI x 1, DP x 2 | VGA x 1, DVI x 1, DP x 2 | VGA x 1, DVI x 1, DP x 2 | VGA x 1, DVI x 1, DP x 2 | VGA x 1, DVI x 1, DP x 2 |
| EXPANSION | Mini-Card x 1 PCIe x 1 | Mini-Card x 1 PCIe x 1 | Mini-Card x 1 PCIe x 1 | Mini-Card x 1 PCIe x 1 | Mini-Card x 1 PCIe x 1 | Mini-Card x 1 PCI x 2 | Mini-Card x 1 PCI x 2 | Mini-Card x 1 PCI x 2 | Mini-Card x 1 PCI x 2 | Mini-Card x 1 PCI x 2 |
| MOUNTING | Wallmount | Wallmount | Wallmount | Wallmount | Wallmount | Wallmount | Wallmount | Wallmount | Wallmount | Wallmount |
| POWER | DC 9-30V | DC 9-30V | DC 9-30V | DC 9-30V | DC 9-30V | DC 9-30V | DC 9-30V | DC 9-30V | DC 9-30V | DC 9-30V |
| OPERATION TEMP. | 0°C ~ 50°C (w/o air) | 0°C ~ 50°C (w/o air) | 0°C ~ 50°C (w/o air) | 0°C ~ 50°C (w/o air) | 0°C ~ 50°C (w/o air) | 0°C ~ 50°C (w/o air) | 0°C ~ 50°C (w/o air) | 0°C ~ 50°C (w/o air) | 0°C ~ 50°C (w/o air) | 0°C ~ 50°C (w/o air) |
Packing List
- Phoenix Power Connector
- M3 x 4mm Screws
- 6# -32 x 10mm Screws
- Wallmount Brackets
- Product DVD
- AEC-6877
Optional Accessories
| ‧1255901202 | Power Adapter, (120W), Output: DC 19V |
| ‧ 1702031802 | Power Cord (US Type) |
| ‧ 1702031803 | Power Cord (European Type) |
| ‧ 170203180E | Power Cord (Japanese Type) |
| ‧ 9741687600 | Extend 2nd 2.5” SATA HDD Kit |
| ‧ 9741687601 | Mini Blower Kit for AEC-6876-Bxx/AEC-6877-Axx/AEC-6877-Bxx Factory Install |
| ‧ 9741687700 | I/O Dust Cover Kit for AEC-6877 |
