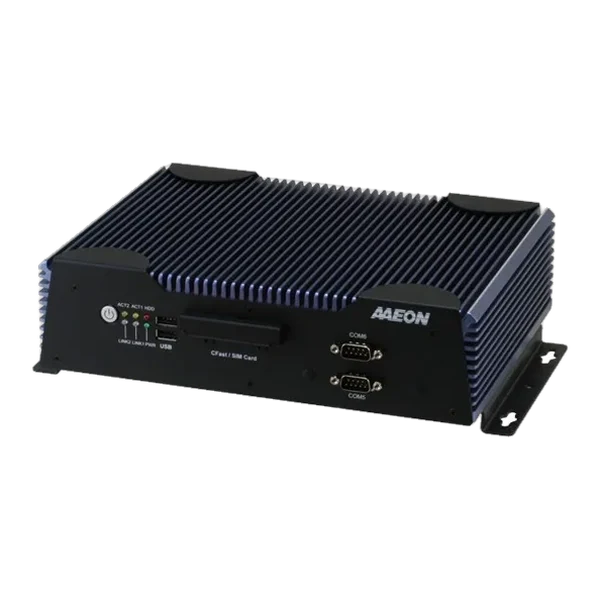

Máy tính công nghiệp không quạt Aaeon BOXER 6651

• Overview

  In addition to saving power with the Intel® Atom™ E3845 SoC, the BOXER-6651 sports the increasingly popular cable-less design, making it a breeze in terms of maintenance and viable as an IoT device. The PC also equipped with isolated RS-232/422/485 ports and is designed to run on a wide range of voltages (9 ~ 30 V) and temperature (-20 ~ 60°C) to facilitate applications in both stationary and on the move.

  Features

  • Intel® Atom™ E3845 Quad Core 1.91 GHz Processor SoC
  • COM x 6: Isolated RS-232/422/485 x 2 + RS-232 x 4
  • USB 3.0 x 1, USB 2.0 x 5
  • Two Intel® Gigabit Ethernet LAN
  • IntelR HD Graphics Engine
  • VGA + DVI-D output
  • SATA 3.0 Gb/s
  • DDR3L 1333 SODIMM x 1, Memory up to 8 GB

• Specifications [BOXER-6651]

  SYSTEM
  CPU	Intel® Atom™ E3845, 1.91 GHz
  CHIPSET	Intel® System on Chip
  SYSTEM MEMORY	DDR3L 1333 SODIMM x 1, up to 8 GB
  DISPLAY INTERFACE	VGA, DVI-D
  STORAGE DEVICE	CFast™, HDD/SSD
  ETHERNET	Intel® I211, 10/100/1000Base-TX x 1 Intel® I211, 10/100/1000Base-TX x 1
  I/O	Isolated RS-232/422/85 x 2 RS-232 x 4 USB 2.0 x 5 USB 3.0 x 1 VGA x 1 DVI x 1 Line-in x 1 Line-out x 1 LAN x 2 CFast slot x 1 Antenna holes x 2 Power switch Power input
  EXPANSION	Full-size Mini-Card x 1 Half-size Mini-Card x 1
  INDICATOR	Power LED HDD active LED LAN LED
  OS SUPPORT	Windows® 10, Windows® 8.1 (32/64-bit), Windows® 7(32/64-bit), WES7/WES8, Linux Ubuntu 12.04/ Kernel 3.2.0
  POWER SUPPLY
  POWER REQUIREMENT	9 - 30V with 3-pin terminal block
  MECHANICAL
  MOUNTING	Wallmount
  DIMENSIONS (W X H X D)	10.4" x 2.74" x 7.62" (264.16mm x 69.62mm x 193.5mm)
  GROSS WEIGHT	12.1 lb (5.5 kg)
  NET WEIGHT	—
  ENVIRONMENTAL
  OPERATING TEMPERATURE	-20°C ~ 65°C W.T. HDD (according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial devices)
  STORAGE TEMPERATURE	-20°C ~ 70°C
  STORAGE HUMIDITY	95% @ 40°C, non-condensing
  ANTI-VIBRATION	5 Grms/ 5 ~ 500Hz/ operation –mSATA / SSD 1 Grms/ 5~ 500Hz/ operation – HDD
  CERTIFICATION	CE/FCC class A

  Ordering Information [BOXER-6651]

  PART NUMBER	BOXER-6651-A1M-1010
  CPU	Intel® Atom™ E3845 SoC
  RAM	_
  LAN	2
  USB 3.0	1
  USB 2.0	5
  RS-232	4
  ISOLATION RS-232/422/485	2
  AUDIO	Line-in x 1 Line-out x 1
  STORAGE	CFast™ slot x 1 2.5" SATA HDD/ SSD drive bay x 1
  ACCESSORY CABLES	_
  DISPLAY	VGA x 1 DVI-D X 1
  EXPANSION	Full size Mini-Card x 1 Half size Mini-Card x 1
  MOUNTING	Wallmount
  POWER	DC in 9-30V
  TEMP.	-13°F ~ 149°F (-25°C ~ 65°C) with industrial grade device (with 0.5 m/s airflow, according to IEC68-2-14)

  Packing List

  • Wallmount Brackets x 2

  • Screw Package x 1

  • RAM Thermal Pad (60mm x 25mm x 3mm) x 1

  • Phoenix Power Connector x 1

  • Product DVD

  • BOXER-6651

  Optional Accessories

  1255900841 - 3 pin for BOXER-6651-A1M	Adapter, AC/DC, input AC, 90-264, output DC 12V, 7A, 84W, 3p phoenix ,FSP, FSP084-DIBAN2
  ‧ 1702031802	Power Cord (US Type)
  ‧ 1702031803	Power Cord (European Type)
  ‧ 170203180E	Power Cord (Japanese Type)

• Bảo hành 24 tháng

• Miễn phí dịch vụ lắp đặt, tư vấn sử dụng tại Tp. Hồ Chí Minh

• Miễn phí dịch vụ bảo trì on-site trong vòng 1 năm tại Tp. Hồ Chí Minh (không bao gồm các huyện ngoại thành). Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.

• Dịch vụ lắp đặt, bảo trì on-site tại các tỉnh thành khác vui lòng liên hệ để được báo giá.
