Máy tính công nghiệp không quạt Aaeon BOXER 6403

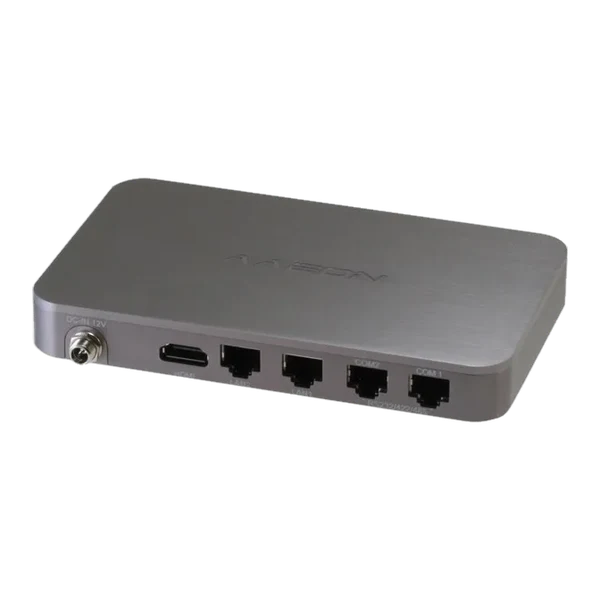

Máy tính công nghiệp không quạt AAEON BOXER-6403

Overview

AAEON introduces the slimmest product in the BOXER series, the BOXER-6403, which utilizes the Intel® Celeron®/AtomTM processor: this boxer PC expands its graphics performance greatly with the newest generation of Celeron®/AtomTM processors. So far, there is no other boxer PC can be so small and slim like the BOXER-6403, not even PICO-ITX system. With this tiny form factor, customers can fit it almost anywhere, and it provides quite a lot of I/O ports for basic applications. BOXER-6403 adopts a reliable fanless design for most rugged environment. It also provides wireless communication features for users wishing to build up a network connection at any locations. The BOXER-6403 is a standalone high performance PC designed for extended operation and with high reliability. It can replace traditional methods and become the mainstream boxer PC for diversified markets.

Features

Slim, Palm-sized, Fanless Box: 20mm
4 Digital Input & 2 Digital Output Support Dry Contact & Wet Contact
HDMI Output
Seamless Communication for WiFi, 3G,4G, GPS, Bluetooth, and ZigBee
Aluminum Die Casting Enclosure
Low-Power-Consumption CPU

Specifications [BOXER-6403]

SYSTEM
CPU	Intel® Celeron™ J1900, 2.0 GHz Intel® Celeron® N2930, 1.83 GHz Intel® Celeron™ N2807, 1.58 GHz Intel® Atom™ E3825, 1.33 GHz
CHIPSET	Intel® System on Chip
SYSTEM MEMORY	DDR3L 1333 SODIMM slot x 1, up to 8 GB (J1900 / N2930 / E3825) or 4 GB (N2807)
DISPLAY INTERFACE	HDMI
STORAGE DEVICE	mSATA
ETHERNET	Intel® I211, 10/100/1000Base-TX x 2
I/O	RS-232/422/485 x 2 USB 2.0 x 3 USB 3.0 x 1 HDMI x 1 LAN x 2 Digital input x 4 Digital output x 2 Antenna holes x 2 Power button Power input
EXPANSION	Half Mini-Card x 1 (mSATA only) Full Mini-Card x 1 with SIM slot
INDICATOR	Power LED on power button
OS SUPPORT	Windows® 10, Windows® 8.1, Windows® 7, Windows® Embedded 8, Windows® Embedded 7, Linux Federa
POWER SUPPLY
POWER REQUIREMENT	12V with lockable DC jack
MECHANICAL
MOUNTING	VESA (Mounting kit is optional) DIN rail (Mounting kit is optional)
DIMENSIONS (W X H X D)	6.22″ x 3.74″ x 0.79″ (158mm x 95mm x 20mm)
GROSS WEIGHT	2.56 lb (1.16kg)
NET WEIGHT	—
ENVIRONMENTAL
OPERATING TEMPERATURE	-30°C ~ 60°C with wide temperature CFast™ card (according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial devices)
STORAGE TEMPERATURE	-30°C ~ 80°C
STORAGE HUMIDITY	95% @ 40°C, non-condensing
ANTI-VIBRATION	3G rms/ 5 ~ 500Hz/ operation –mSATA
CERTIFICATION	CE/FCC class A

Ordering Information [BOXER-6403]

PART NUMBER	BOXER-6403-A00-1010	BOXER-6403-A01-1010	BOXER-6403-A02-1010	BOXER-6403-A03-1010
CPU	Intel® N2807	Intel® N2930	Intel® E3825	Intel® J1900
RAM	Up to 4GB	Up to 8GB	Up to 4GB	Up to 8GB
LAN	2	2	2	2
USB 3.0	1	1	1	1
USB 2.0	3	3	3	3
RS-232/422/485	2	2	2	2
STORAGE	mSATA bay x 1	mSATA bay x 1	mSATA bay x 1	mSATA bay x 1
DISPLAY	HDMI	HDMI	HDMI	HDMI
EXPANSION	WiFi b/g/n (optional)	WiFi b/g/n (optional)	WiFi b/g/n (optional)	WiFi b/g/n (optional)
MOUNTING	Din Rail/VESA 75	Din Rail/VESA 75	Din Rail/VESA 75	Din Rail/VESA 75
POWER	12V DC in	12V DC in	12V DC in	12V DC in
OPERATION TEMP.	-30°C ~ 60°C with 0.5 m/s airflow	-30°C ~ 60°C with 0.5 m/s airflow	-30°C ~ 60°C with 0.5 m/s airflow	-30°C ~ 60°C with 0.5 m/s airflow

Packing List

RJ-45 to COM Cable x 2
Power Adapter
Product CD
BOXER-6403

Optional Accessories

1702031802	Power Cord (US type)
1702031803	Power Cord (European Type)
170203180E	Power Cord (Japanese Type)
9751640300	4G Module & Antenna (for Europe)
9751640301	4G Module & Antenna (for USA)
9751640303	WiFi/BT Module & Antenna
125530060A	Power Adapter
M046403000	Anti-Heat Kit
9741640300	VESA Mount Kit
9741640301	DIN Rail Mount Kit

Bảo hành 24 tháng
Miễn phí dịch vụ lắp đặt, tư vấn sử dụng tại Tp. Hồ Chí Minh
Miễn phí dịch vụ bảo trì on-site trong vòng 1 năm tại Tp. Hồ Chí Minh (không bao gồm các huyện ngoại thành). Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.
Dịch vụ lắp đặt, bảo trì on-site tại các tỉnh thành khác vui lòng liên hệ để được báo giá.
